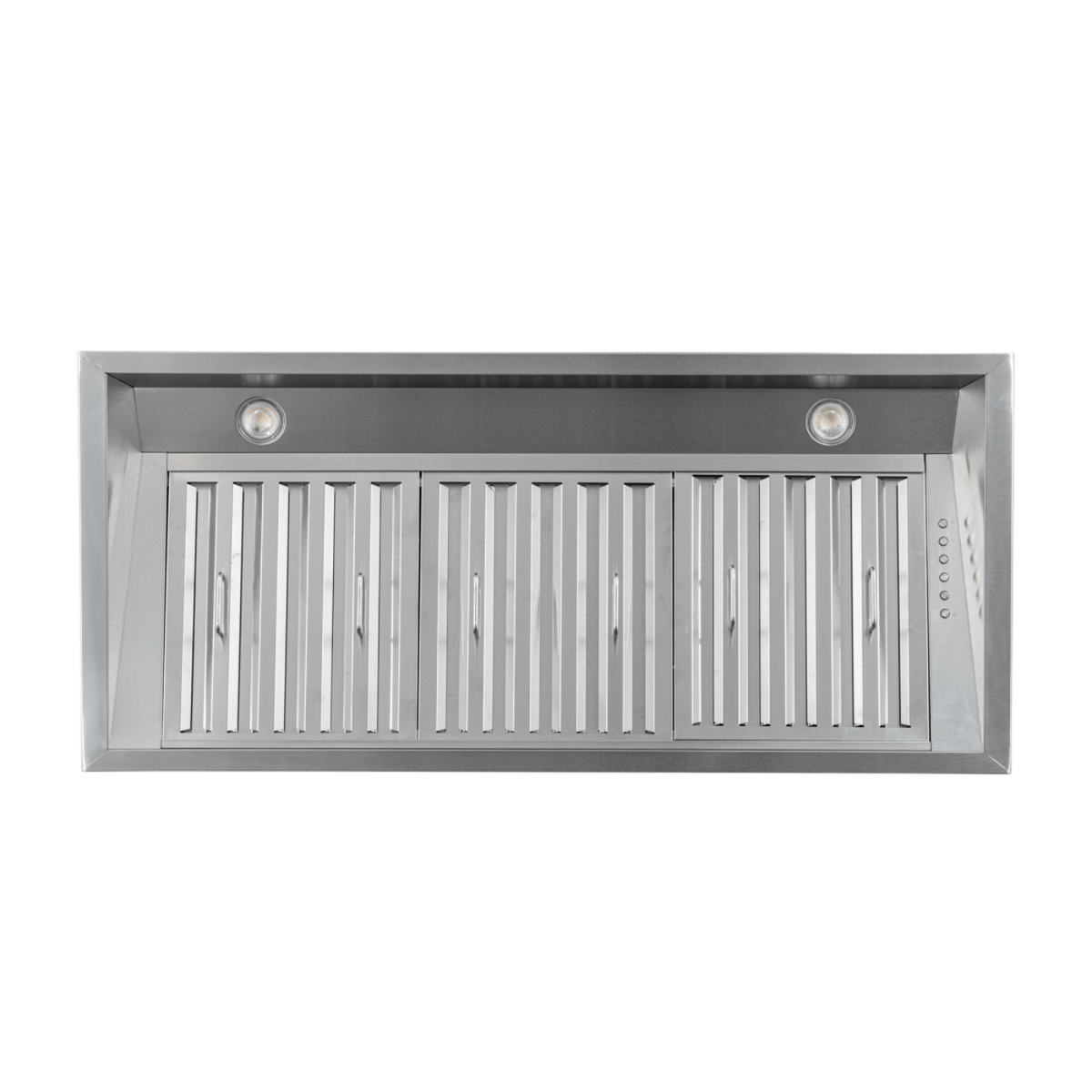

Insert Range Hood, Ducted, 600 or 1200 CFM, Stainless Steel Finish| Proline PLJL INS - PLJL.INS.2815B

Insert Range Hood, Ducted, 600 or 1200 CFM, Stainless Steel Finish| Proline PLJL INS - PLJL.INS.2815B

The PLJL INS range hood insert delivers powerful, quiet performance with your choice of a 600 CFM single blower or 1200 CFM dual blowers, operating at just 7 sones (about the level of normal conversation). Front-mounted LED lights provide excellent lighting, while the side control panel with four speeds is easy to access. Dishwasher-safe baffle filters make maintenance simple. Reliable, stylish, and efficient, the PLJL INS is the perfect insert for your custom hood.

Features

• Compact Size Selections (28" to 58"): Catering to custom cabinetry and kitchen designs, these inserts fit seamlessly into a wide range of kitchen styles, offering a built-in look that enhances overall kitchen aesthetics.
• CFM Blower Options for Different Cooking Needs (600 and 1200): The 600 CFM models are well-suited for standard cooking tasks, efficiently removing smoke and odors, while the 1200 CFM models offer enhanced ventilation power for more demanding cooking activities, ensuring a clean kitchen environment.
• Operational Quietness (7 Sones/56.06 Db): Engineered for quiet operation, these inserts allow for a more pleasant cooking and dining atmosphere, reducing the distraction of noise.
• Motor Variations (Single and Dual): The single motor versions offer solid, everyday performance, making them suitable for standard kitchen uses. The dual motor models boost the ventilation capacity, ideal for handling heavier cooking vapors and odors.
• Ease of Use (Push Button Control): Simple and intuitive push-button controls make it easy to adjust ventilation levels, matching the cooking demands without hassle.
• Ducted System Compatibility: These inserts are exclusively designed for ducted installations, directing unwanted kitchen air outside, which is essential for maintaining indoor air quality in kitchens equipped for external venting.

What our Experts Think

• Dual airflow options (600 or 1200 CFM) — choose lighter everyday ventilation or powerful extraction for heavy cooking

• Ducted‑only design — directs air outside for maximum performance and odor removal

• Sleek stainless steel finish — modern look that’s easy to clean and resists corrosion

• Insert built‑in style — blends seamlessly into custom cabinetry or custom hood surrounds

• 4‑speed fan control — precise airflow adjustment from simmer to sear

• Dishwasher‑safe baffle filters — effective grease capture with minimal maintenance

• LED lighting — bright, energy‑efficient illumination over your cooktop

• Quiet performance for its class — strong extraction without overwhelming noise

• Best for custom kitchens — ideal when you want powerful ventilation hidden in your design

Q&A

Q1: What airflow options does this insert range hood offer?
A: Choose a 600 CFM single blower for standard ventilation or 1200 CFM dual blowers for powerful extraction of smoke, grease, and odors.

Q2: Is this range hood ducted or ductless?
A: It’s a ducted-only insert, designed to vent exhaust air outside for maximum efficiency and cleaner indoor air quality.

Q3: What sizes and depths are available?
A: Available in widths from about 28″ to 58″ and depths 15″, 18″, or 21″ to fit custom cabinetry and hood enclosures.

Q4: What finish does it have?
A: The unit features a 430 stainless steel finish that’s durable, easy to clean, and complements modern kitchens.

Q5: How quiet is the range hood?
A: It operates around 7 sones (~56 dB) at max blower speed, roughly the level of a normal conversation.

Q6: Are the filters easy to maintain?
A: Yes — it uses dishwasher‑safe stainless steel baffle filters that simplify cleaning and upkeep.

Q7: What type of controls and lighting does it include?
A: Features a 4‑speed push‑button control panel and built‑in halogen/LED lighting to keep your cooktop well‑lit.

Q8: Can this insert fit custom built‑in hoods?
A: Yes — its insert design easily integrates into custom hood structures for a seamless, built‑in look.

Q9: How does the blower selection affect performance?
A: A 600 CFM blower handles everyday cooking well, while the 1200 CFM dual setup offers stronger ventilation for heavy cooking.

Maintenance Tips

• Clean Baffle Filters Every 1–2 Months
  Dishwasher-safe stainless steel filters trap grease efficiently—regular cleaning maintains 600–1200 CFM airflow.

• Wipe Stainless Steel Liner & Exterior
  Use a soft, non-abrasive cloth and cleaner with the grain to preserve the finish and prevent streaks.

• Inspect & Clean Blower/Fan
  Grease buildup on fan blades reduces suction and increases noise; clean periodically for smooth operation.

• Check Ductwork for Blockages (Ducted Mode)
  Clear and properly seal ducts to ensure optimal airflow and prevent fire hazards.

• Maintain Control Panel & Lighting
  Keep buttons grease-free and replace halogen or LED bulbs as needed for consistent performance.

• Test Airflow Regularly
  Weak suction or unusual sounds indicate maintenance is needed—address early to protect the motor.
