OPC505AE Information
3600 RPM drive with Auto adjusting feed chamber upto 5.25 dia trees, large feed chute, adjustable pickup height rotational chip chute. ALL TERRAIN ON/OFF ROAD TIRES D.O.T approved with included 2 inch ball tow bar. CE safety certified. DK2 POWER manufactures performance equipment, driven by Kohler, CH440 14 HP 3 yr commercial warranty.
DK2 POWER ENGINEERS & MANUFACTURES HIGH PERFORMANCE EQUIPMENT FOR THE HARD-WORKING PROFESSIONAL.
- KOHLER® 14 HP CH440 engine with commercial 3-year warranty

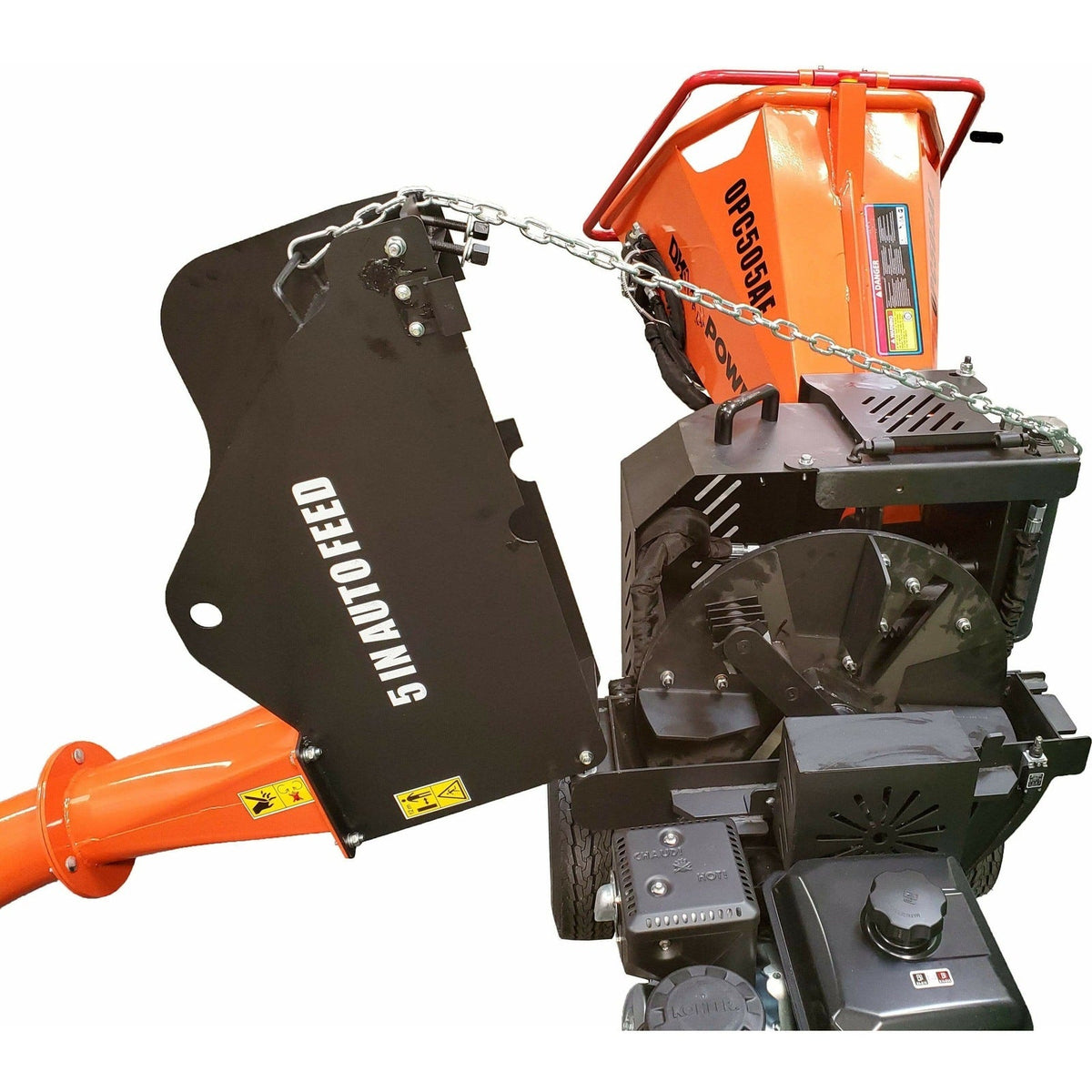

- Dual swing-open chutes for easy drum access
- High speed disk chipper shredder
- 600 RPM feed at 240 n*m torque with forward and reverse
- Auto blade feeding system
- Auto Adjust cutters for brush up to 5.25 diameter trees
- All terrain on/off road tires D.O.T. approved with included 2” ball tow bar
- Dual, tool free rotational spout on chip chute

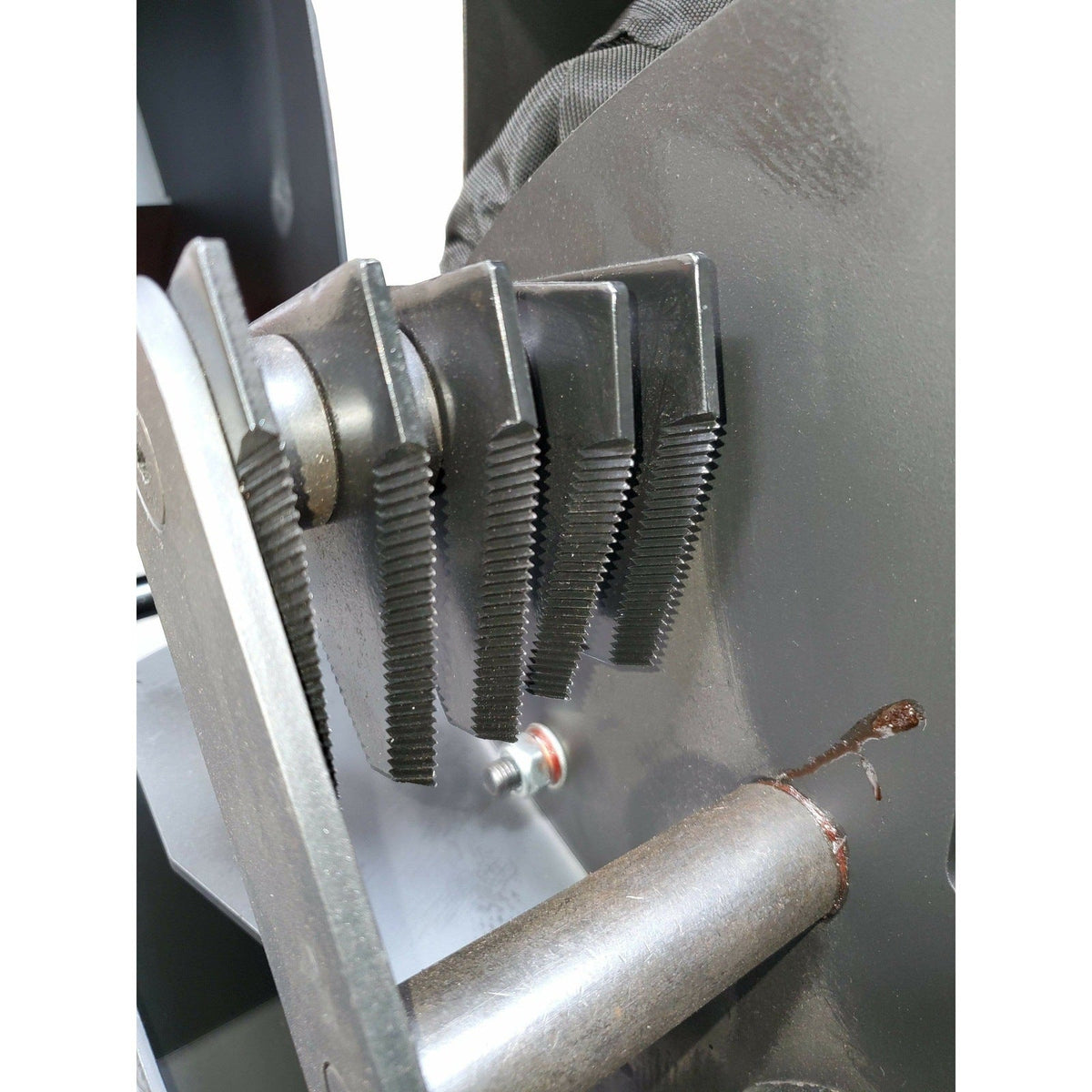

- Internal, free-spinning teeth clear chips and wood from drum interior
- Extra-large reinforced feed hopper with integrated equipment moving handles
- Electric start - battery included
- CE Safety certified
- 3-year KOHLER® and 1-year DK2 warranty
Specifications

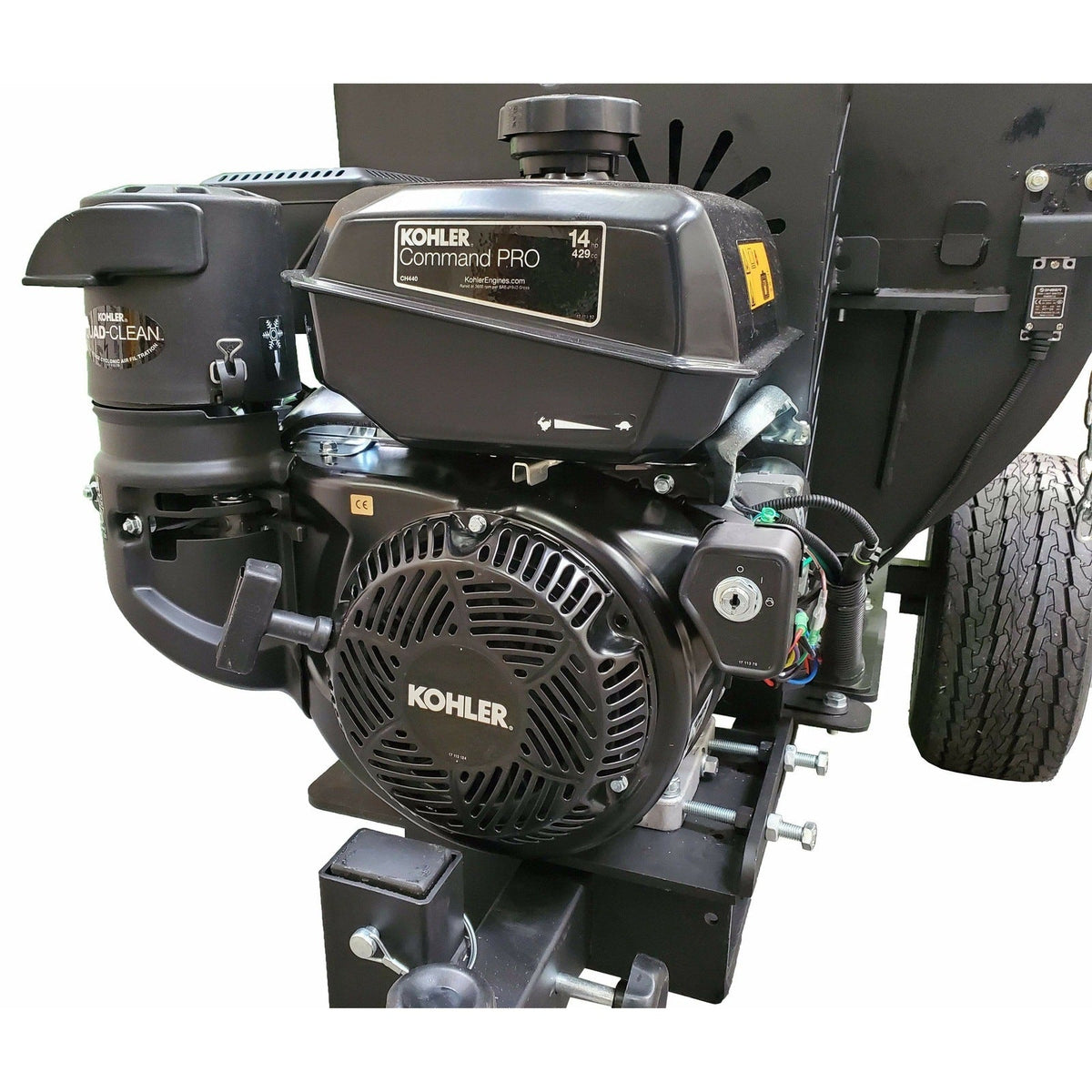

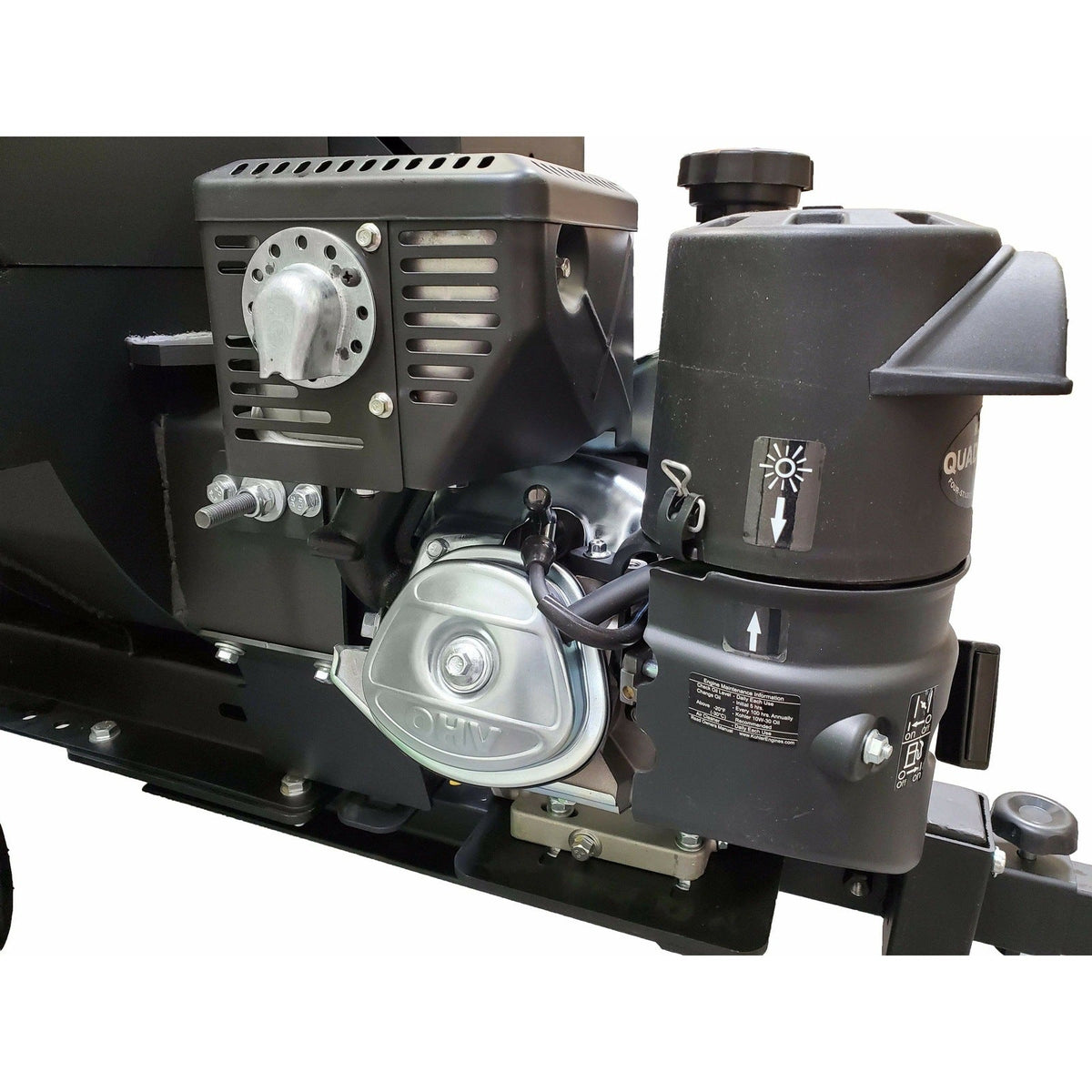

ENGINE MODEL: KOHLER CH440
ENGINE: 14 HP COMMAND PRO COMMERCIAL
RATED POWER: 14 HP
RATED SPEED: 3600 RPM
TIRES: D.O.T. 45 MPH
WHEELBASE: 47'
TREE DIAMETER: 5.25'

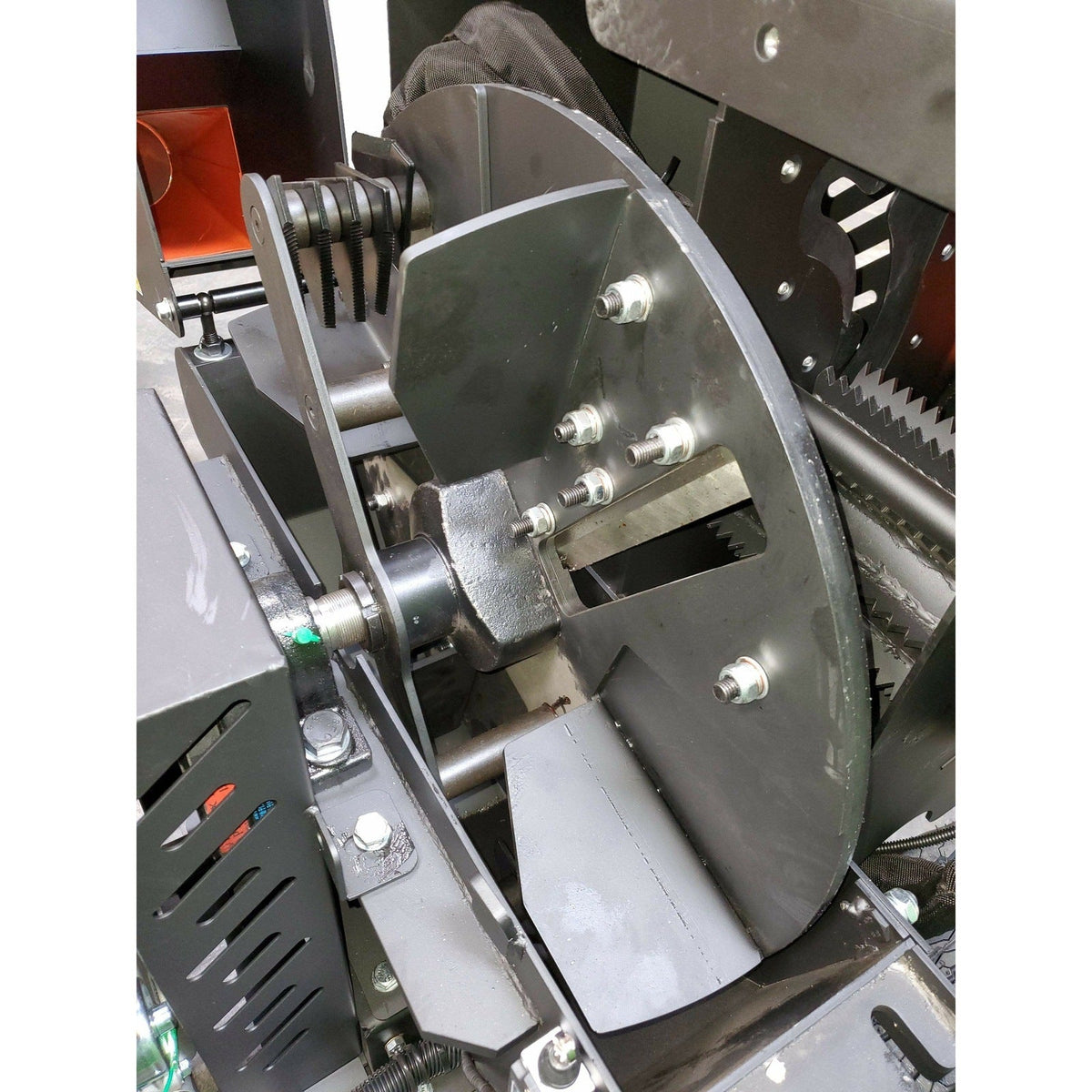

CUTTING BLADES: HIGH SPEED DISK CUTTERS
CHIPPER SHREDDER: AUTO ADJUSTING 5' TO 1/8' MATERIALS
GEARBOX: DIRECT DRIVE
EXPULSION CHUTE: ADJUSTABLE 180° 59' PICKUP BED HEIGHT
WARRANTY: 3 YEAR ENGINE, 1 YEAR CHASSIS
DIMENSIONS: 91 x 61 x 40'
WEIGHT: 638 LBS
Other similar chippers can be found here:
What Our Experts Think

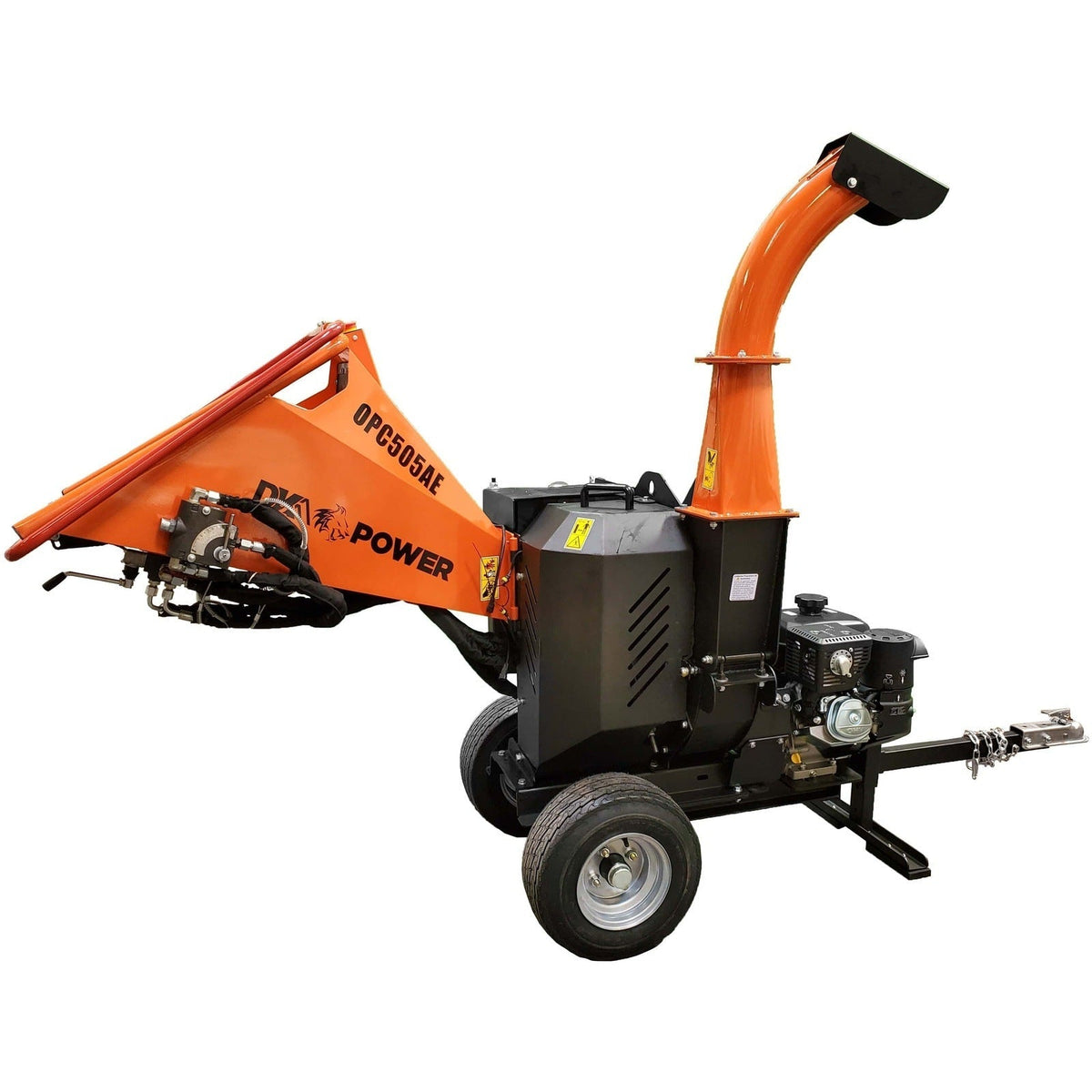

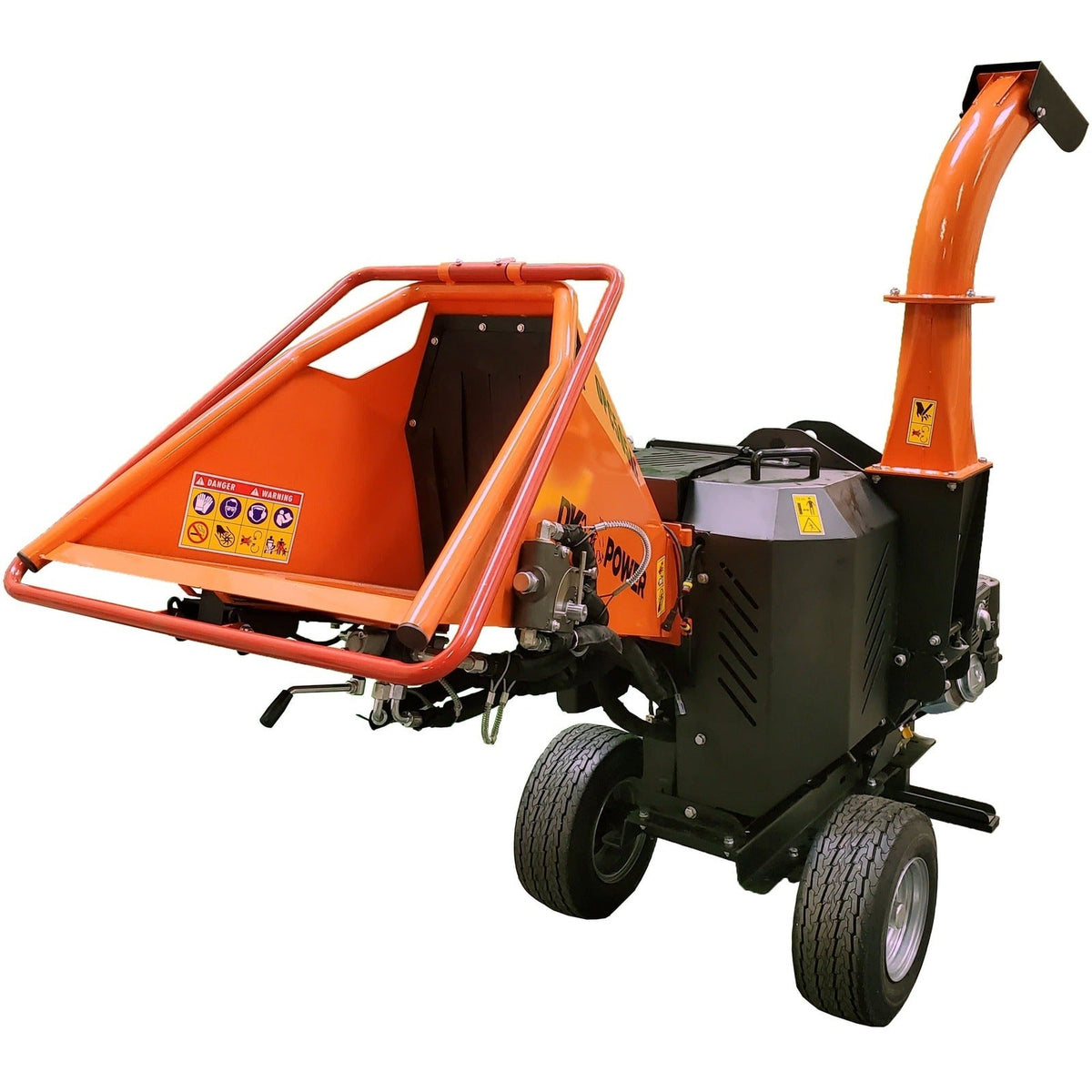

The DK2 5” Electric Start Chipper with Self-Contained Auto Feed System (OPC505AE) is a professional-grade tool designed for efficient and effortless yard cleanup. Here’s why it’s a standout:
-
Electric Start Convenience: Features an electric start for quick and reliable ignition, making operation easy and hassle-free.
-
Auto Feed System: Equipped with a self-contained hydraulic roller feed system that automatically pulls in branches for effortless operation.
-
High-Speed Performance: Operates at speeds up to 600 RPM, quickly chipping branches and debris up to 5 inches in diameter.
-
Powerful Engine: Driven by a robust 14HP Kohler engine, delivering consistent power for demanding chipping tasks.
-
Durable Construction: Made from heavy-duty steel for long-lasting durability, capable of withstanding rugged conditions.
-
DOT Compliant: Fully certified for road use, allowing you to tow it easily to job sites with its included 2-inch ball hitch.
-
Compact and Towable: Designed for portability with a towable frame, making it ideal for landscapers and contractors.
-

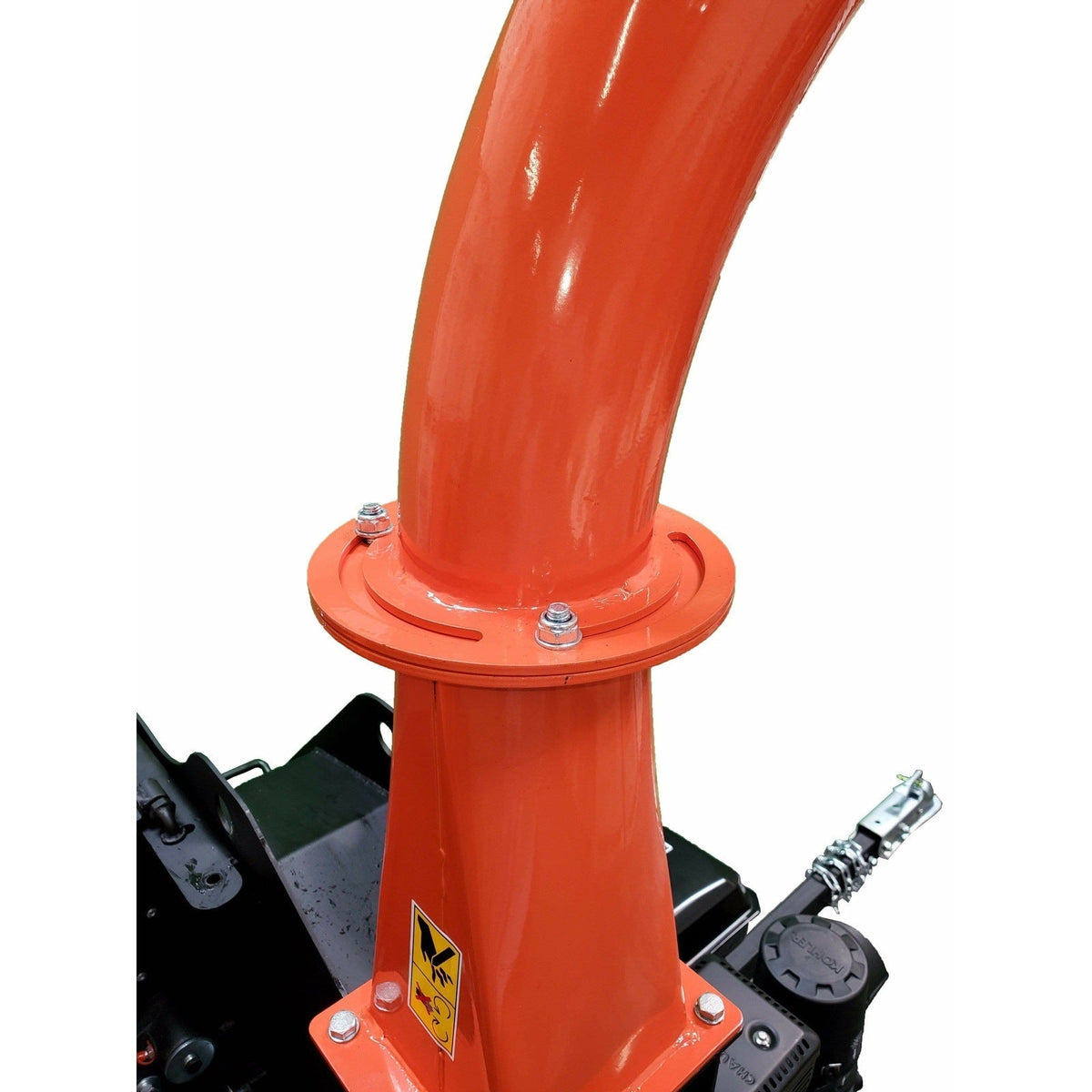

Adjustable Discharge Chute: Directs chipped material precisely where you need it for easier cleanup.
Q&A
Q: What is the DK2 5” Electric Start Chipper with Auto Feed System (OPC505AE)?
A: The DK2 OPC505AE is a self-contained commercial-grade chipper equipped with a 5-inch chipping capacity, an electric start, and a hydraulic auto-feed system with roller speeds up to 600 RPM for efficient wood processing.
Q: What are the key features?
A: Key features include a powerful 14HP Kohler Command Pro CH440 engine, an electric start for convenience, a hydraulic auto-feed system, adjustable roller speeds up to 600 RPM, and a durable D.O.T.-approved trailer for easy transport.
Q: What materials can it handle?
A: It can handle branches, limbs, and yard debris up to 5 inches in diameter, making it suitable for residential, commercial, and agricultural applications.
Q: How does the hydraulic auto-feed system improve operation?
A: The auto-feed system uses hydraulic rollers to pull in materials smoothly, minimizing manual effort and increasing productivity.
Q: Why choose the DK2 OPC505AE?
A: Its electric start, hydraulic auto-feed system, and rugged design make it ideal for heavy-duty chipping tasks, offering both efficiency and reliability.
Q: What’s included in the package?
A: The package includes the chipper unit, Kohler engine, electric start system, hydraulic auto-feed rollers, trailer kit, safety keys, assembly tools, and a user manual.
Maintenance Tips
-
Clean After Use: Remove wood debris, chips, and dust from the chute, hopper, and hydraulic system to prevent clogs and buildup.
-
Inspect Blades: Check chipper blades for dullness or damage. Sharpen or replace them as needed to maintain cutting efficiency.
-
Maintain Hydraulic System: Regularly check hydraulic fluid levels and inspect hoses and fittings for leaks or wear. Replace damaged components promptly.
-
Engine Oil: Monitor and change the oil in the engine according to the manufacturer’s recommendations to ensure smooth operation.
-
Check Air Filter: Clean or replace the air filter periodically to maintain proper airflow and engine performance.
-
Test Auto Feed System: Ensure the auto feed and hydraulic roller are functioning correctly, and adjust roller speeds if necessary.
-
Inspect and Tighten: Check all bolts, fasteners, and mounting components for tightness to ensure safe and secure operation.
-
Battery Care: Test the electric start system regularly and maintain the battery by keeping it fully charged and clean.
-
Store Properly: Store the chipper in a dry, covered area and drain fuel if it will be unused for an extended period.
