Product Highlight

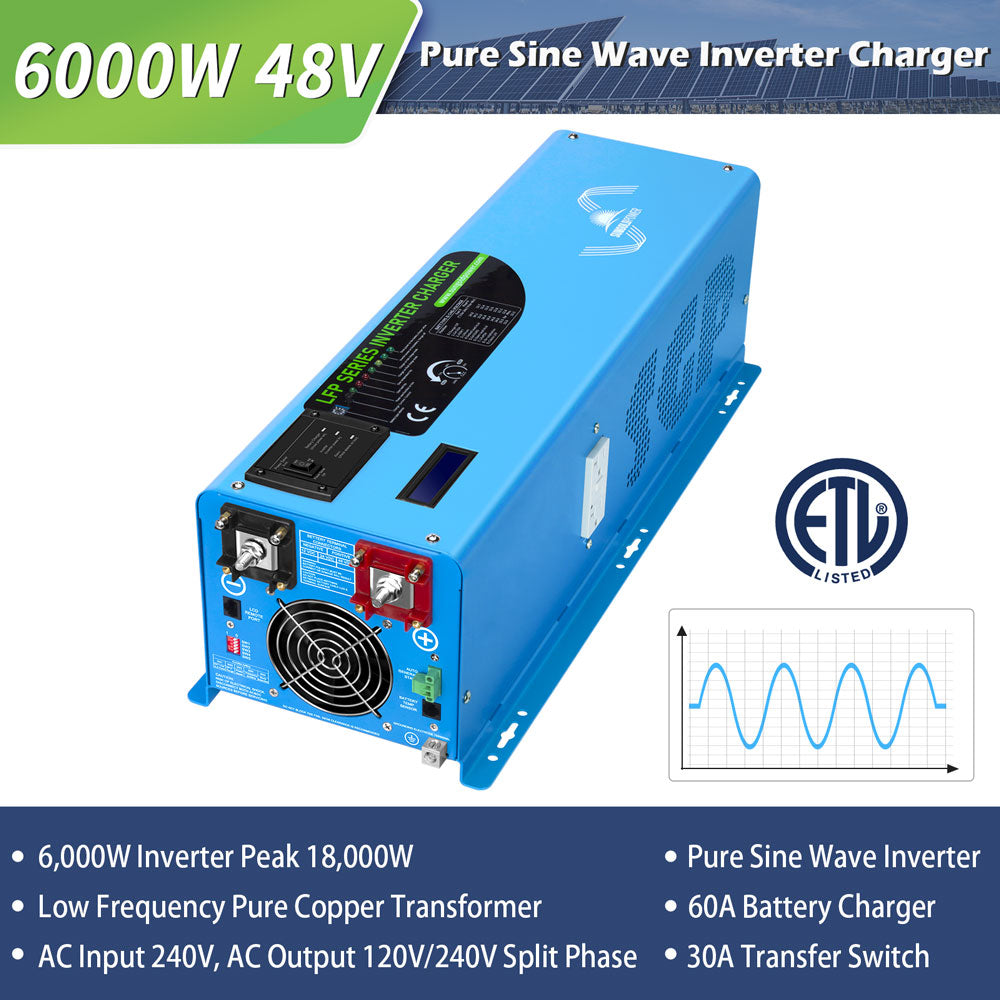

★ This LFP Series 6000 watt Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control. It is UL1741 standard.
★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
★ Auto Gen Start: The inverter can start up a generator when battery voltage goes low, and turn the generator off after battery charging is finished.
Specification
Main Features *6000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control.
*Low Idle Consumption.

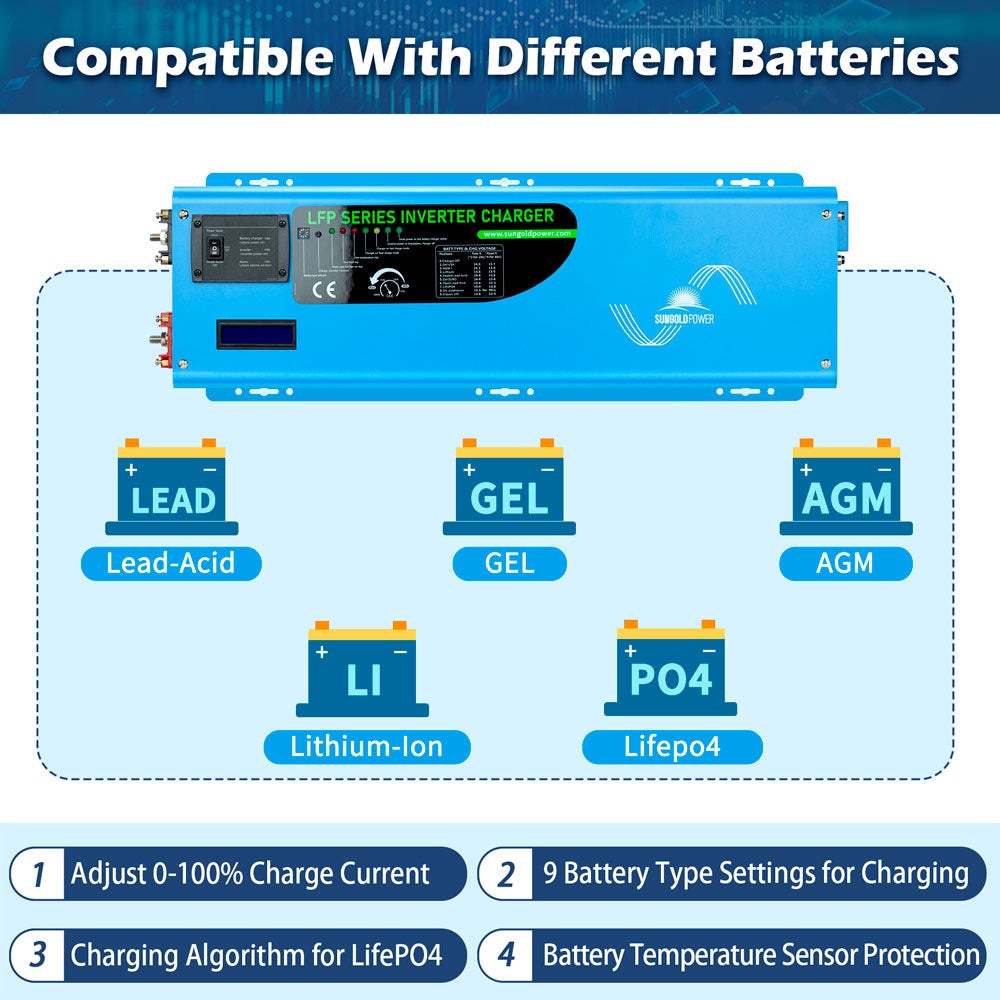

*9 battery type settings for charger.
*Multi Stage Smart charger 60+/-5A, charger can be disable.
*10msec typical transfer time.
Inverter Output *Continuous Output Power: 6000W
*Surge Rating: 18000W (20 Seconds)
*AC Output: AC 120V and AC 240V
*AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%
DC Input: *Nominal Input Voltage: 48.0Vdc
*Minimum Start Voltage: 40.0Vdc
*Low Battery Alarm: 42.0Vdc-44.0Vdc
*Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1)
*High Voltage Alarm: 64.0Vdc
*Low battery Voltage Restart: 52Vdc
*Idle Consumption: 81W
*Power Saver Mode Idle Consumption: 30W
AC Charger *Charger Rate: 60+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
*Over Charge Protection Shutdown: 62.8V
*Selectable Charge Setting based on battery type
*Adjustable charge current: off 0%-100%
*3-step intelligent battery charger

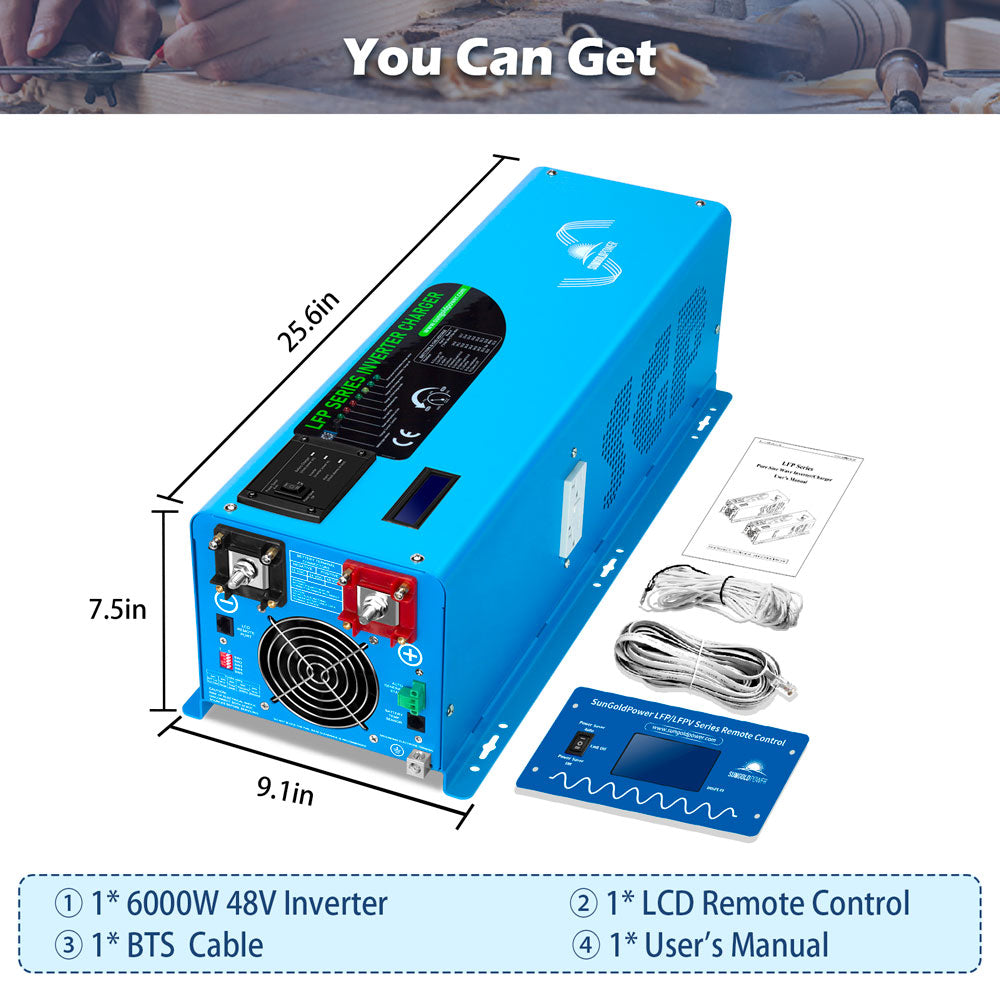

Packaging *6000W 48V Low Frequency Pure Sine Inverter
Robust Power Output: Delivers 6,000W continuous power, perfect for larger off-grid and backup systems.
Split-Phase Functionality: Provides 120V/240V output, ideal for powering standard appliances and heavy-duty equipment simultaneously.
Pure Sine Wave Technology: Ensures clean, stable power, protecting sensitive electronics and maximizing efficiency.
48V DC System: Optimized for high-capacity battery setups, suitable for residential and commercial energy needs.
UL1741 Certified: Meets stringent safety and quality standards, ensuring reliable and secure operation.
Integrated Charger: Combines inverter and battery charging functionality for seamless energy management.
Comprehensive Safety Protections: Features safeguards against overload, over-voltage, and short circuits for dependable performance.
User-Friendly Design: Compact and easy to install, with intuitive controls and monitoring indicators for hassle-free operation.
Q&A
Q: What is the 6000W DC 48V Split Phase Pure Sine Wave Inverter? A: The LFP6K48V230VSP is a high-performance inverter delivering 6000W of pure sine wave power with split-phase functionality. It features a built-in charger and meets the UL1741 standard for safety and reliability.
Q: What are its key features? A:
Power Output: 6000W pure sine wave for smooth and efficient performance.
Voltage: DC 48V input; split-phase 230V output.
Charger: Integrated charger for seamless operation.
Certification: UL1741 standard ensures safety and compliance.
Q: Who is this inverter ideal for? A: Ideal for residential, commercial, and off-grid power systems requiring reliable and efficient energy conversion.
Q: Why choose this inverter? A: It offers clean power, robust performance, and trusted UL1741 certification, ensuring top-tier quality for demanding energy needs
Maintenance Tips
Keep Clean: Dust and wipe the unit regularly to prevent overheating.
Inspect Connections: Ensure all wiring and terminals are secure and free of corrosion.
Monitor Ventilation: Keep vents unobstructed to maintain optimal airflow and cooling.
Battery Maintenance: Check the battery bank (if applicable) for proper charge levels and clean terminals.
Firmware Updates: Stay updated with manufacturer-released firmware for peak performance.
Check Charger Functionality: Periodically test the charger to ensure it operates correctly.
Safety First: Always disconnect power before performing maintenance
