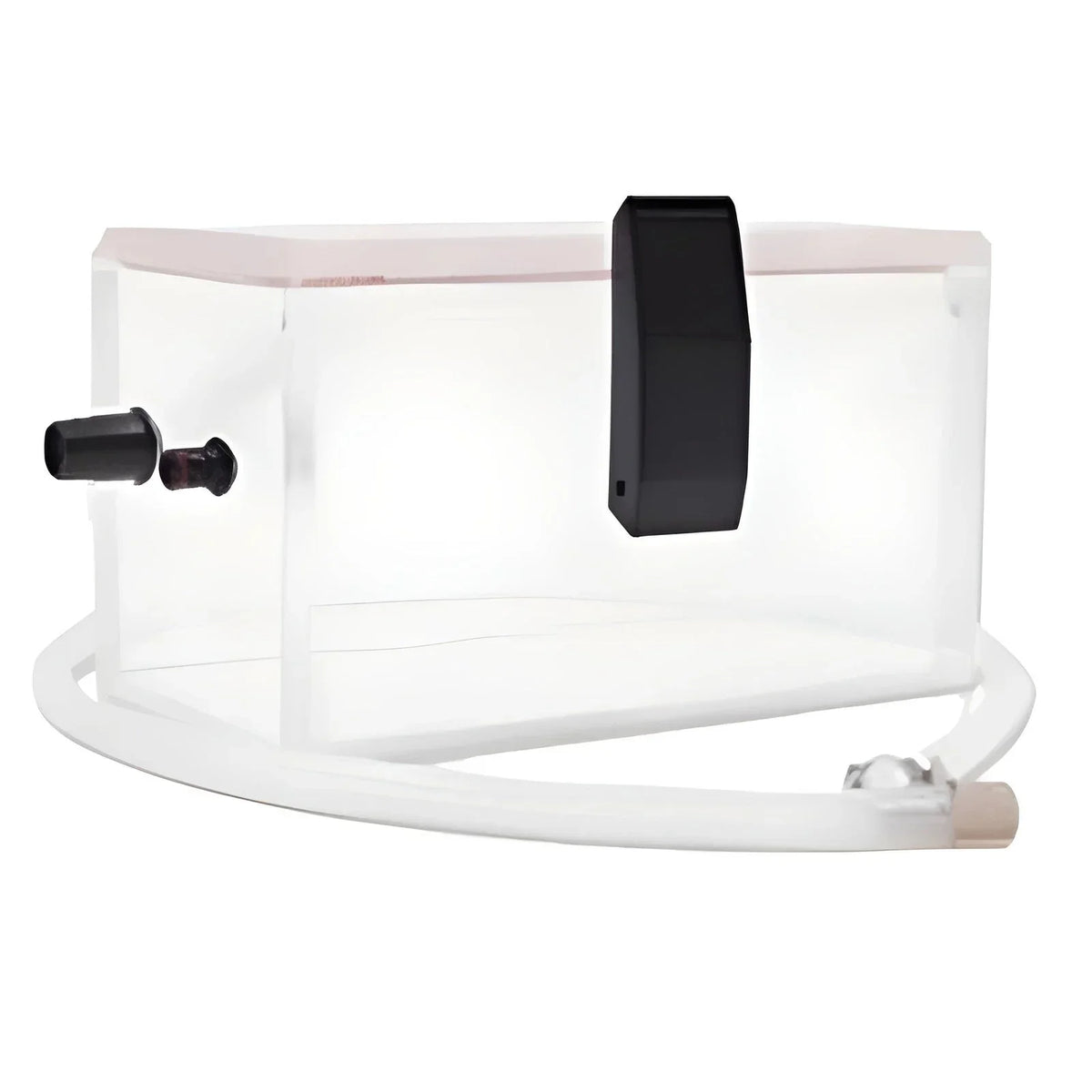

DRE Induction Chamber - Small - DR-15004C
The DRE Small Induction Chamber (DR-15004C) is designed to provide a safe and controlled environment for anesthesia induction in laboratory animals, particularly mice and rats.
Features
-
Material: Constructed from durable 1/2" medical grade plexiglass, ensuring strength and reliability.
-
Evacuation Outlet: Includes a 19 mm evacuation outlet for efficient gas removal.
-
Fresh Gas Inlet: Equipped with a quick-connect fresh gas inlet for easy and secure gas supply.
-
Airtight Cover: Features an airtight cover that seals tightly to maintain the anesthesia environment.
-
Flip Lid: The lid has a sealed .50 frame design for easy access and secure closure.
-
Seal System: Utilizes a silicone gasket embedded into a machined groove on the cover for effective sealing against leaks.
Specification
| Material: |
1/2" Medical grade plexiglass for durability and clarity. |
| Evacuation Outlet Diameter: |
19 mm. |
| Fresh Gas Inlet: |
Quick-connect port for easy gas supply.
|
| Seal System: |
Silicone gasket embedded in a machined groove on the cover for a secure seal. |
|
Dimensions:
|
9.25 " x 5" x 5.5" |
What Our Experts Think
The DRE Induction Chamber - Small (DR-15004C) is a compact and efficient tool designed to safely and effectively anesthetize small animals. Its durable construction and practical features make it a valuable asset in veterinary practices:
-
Secure Anesthesia Induction: Provides a controlled environment for administering inhalant anesthetics to small animals.
-
Durable Construction: Made from high-quality, easy-to-clean materials for long-lasting use.
-
Transparent Design: Allows clear visibility of the patient during the induction process.
-
Compact Size: Ideal for smaller animals and space-constrained settings.
-
Easy Connectivity: Compatible with most anesthesia machines for seamless integration.
Q&A
Q: What animals is this chamber suitable for?
A: It is designed for small animals such as rodents, birds, and other small pets.
Q: Is it easy to clean?
A: Yes, the chamber is made from materials that are simple to disinfect and maintain.
Q: Does it work with all anesthesia machines?
A: The chamber is compatible with most standard veterinary anesthesia systems.
Q: How is patient safety ensured?
A: The transparent design allows for continuous monitoring, and the sealed chamber minimizes anesthetic gas exposure to the environment.
Q: What are its dimensions?
A: The chamber is small and designed specifically for smaller animal patients, ensuring proper fit and functionality.
Maintenance Tips
-
Clean Thoroughly After Each Use: Use a veterinary-safe disinfectant to clean the chamber inside and out.
-
Inspect for Cracks: Regularly check for damage to ensure no leaks occur.
-
Store in a Safe Place: Keep the chamber in a clean, dry area when not in use.
-
Check Seals: Verify that the seals are intact for safe and effective anesthesia induction.
-
Avoid Harsh Chemicals: Use only recommended cleaning solutions to preserve the chamber's material integrity.
