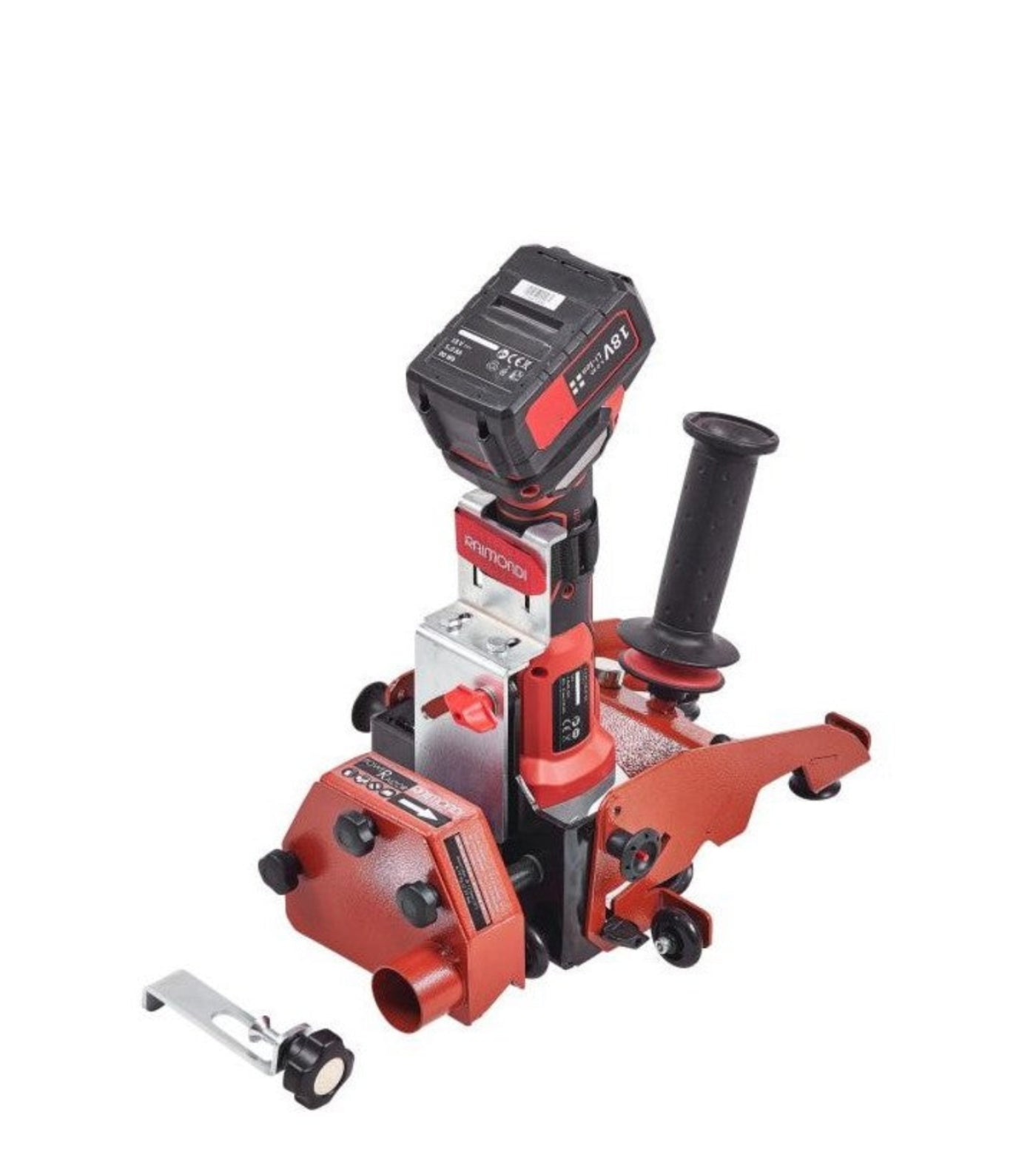

Raimondi Power Raizor MkII Multi-Angle Cutting Unit - TCPWRV2BU

Raimondi Power Raizor MkII Multi-Angle Cutting Unit - TCPWRV2BU

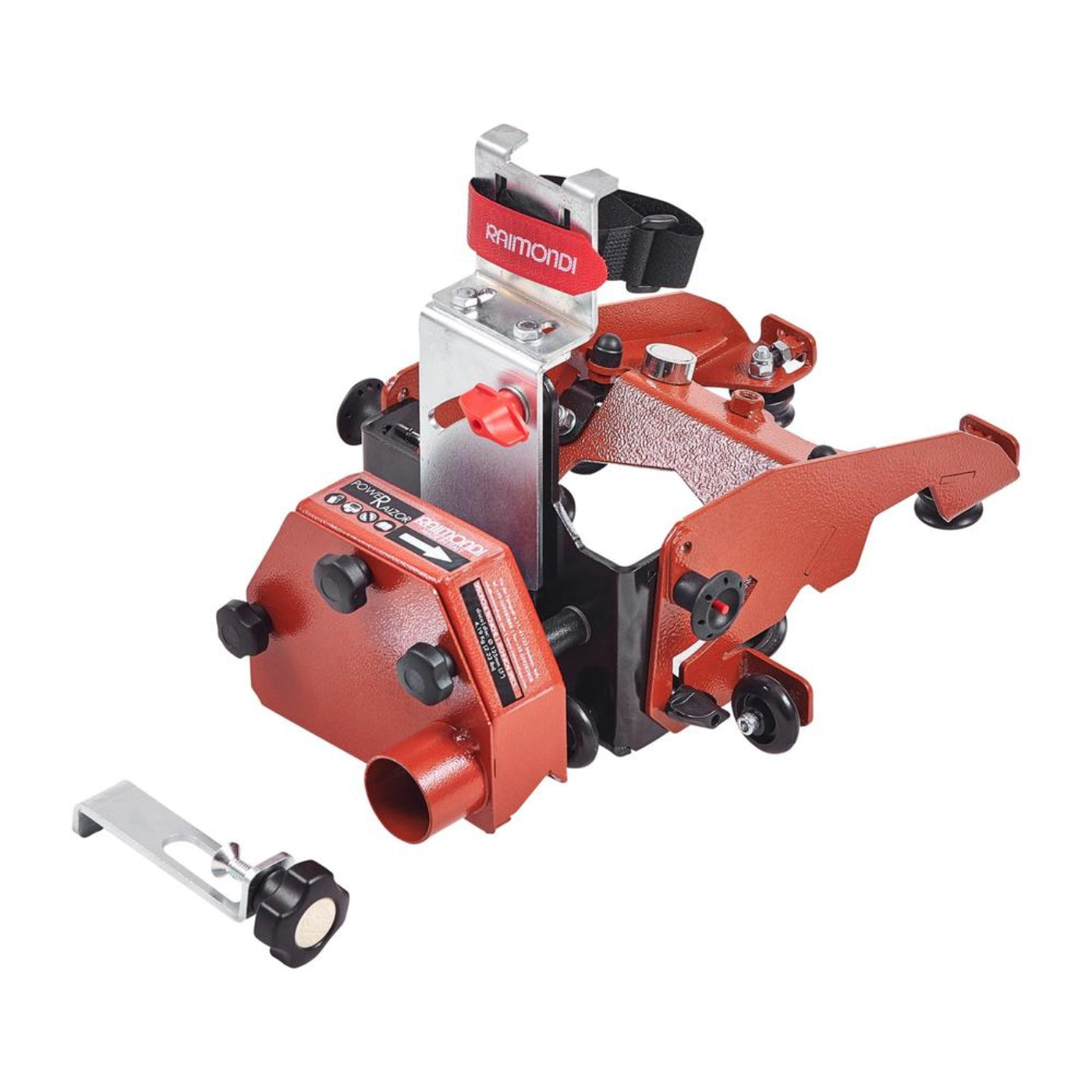

Raimondi Power Raizor MkII multi-angle cutting unit makes cuts between 90° and 45° to create square/rectangular knockouts or for general edge treatment. This accessory is only for use with the Raimondi Raizor Mk II Large Format Tile Cutting System.

Features

• Use with the Raizor Mkll rail cutter

• Not compatible with original TC10RAIZOR system

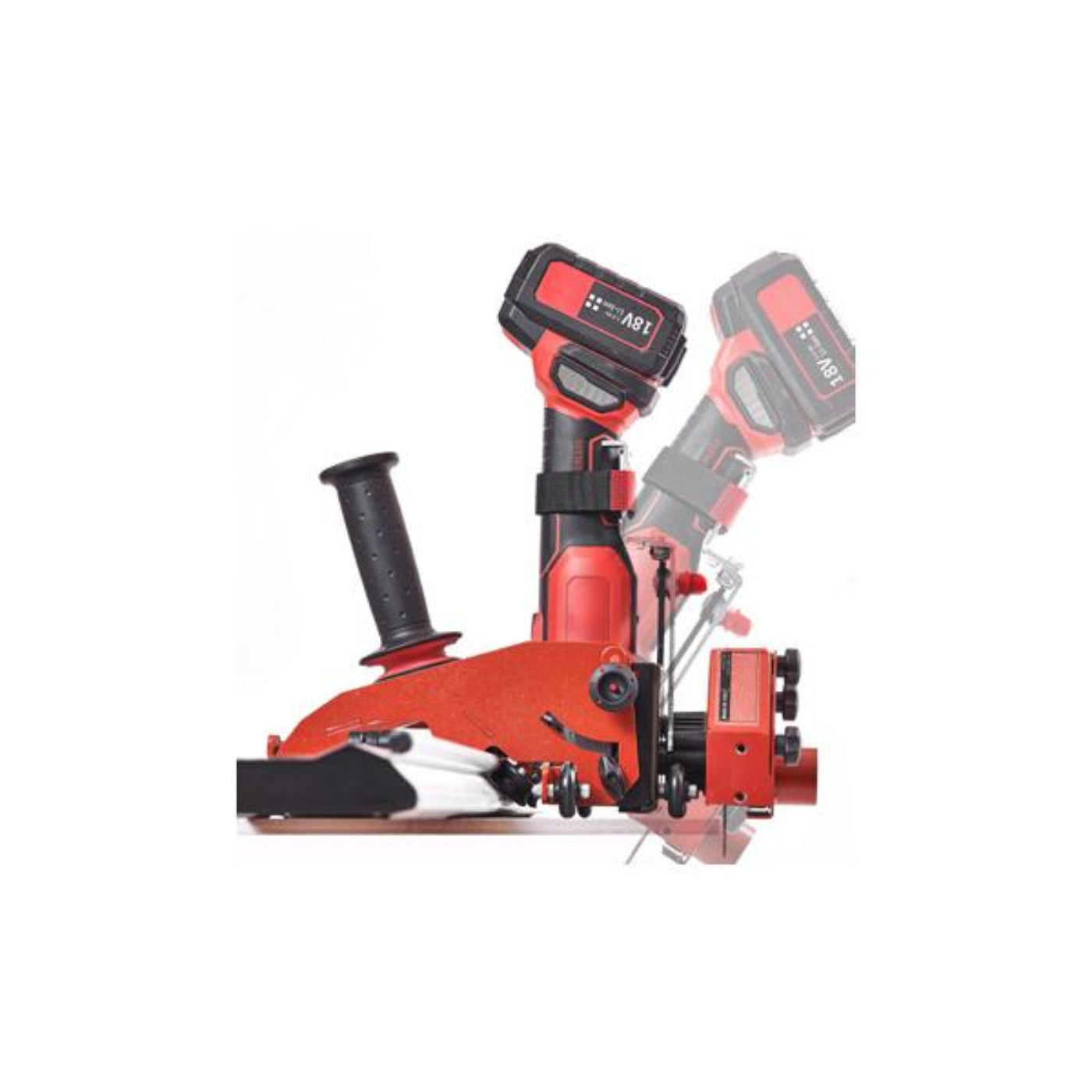

• Cuts at any angle between 90° and 45°
• Plunge cut adjusts the cut depth to perform square and rectangular holes
• Available in version of grinder with M14 metric arbor and version of 5/8" - 11 imperial arbor
• Cutting depth allowed: 20 mm (for 90°), 16 mm (for 45° angle)
• Wet and dry cutting with water feed system and vacuum port
• Use proper GFCI protection around water
• Angle grinder and blade not included

What our Experts Think

• Professional multi‑angle cutting unit engineered for Raimondi EASY‑MOVE and workbench systems
• Allows clean, precise angle cuts (45°, 90°, custom angles) without switching tools
• Built‑in guide and locking system ensures repeatable, accurate cuts every time
• Robust construction handles large‑format porcelain, stone, and engineered slabs
• Quick setup and adjustment keeps workflow smooth on the jobsite
• Minimizes machining errors and material waste for improved efficiency
• Perfect for tile installers who need versatility without sacrificing precision

Q&A

Q: What is the Raimondi Power Raizor MkII (TCPWRV2BU)?
A: A heavy‑duty, multi‑angle cutting unit for precision cutting of large‑format tiles and slabs with adjustable angle capability.

Q: What tasks is this cutting unit designed for?
A: Accurate straight, bevel, and angled cuts on porcelain, ceramic, stone, and large panels used in modern installations.

Q: What makes the MkII “multi‑angle”?
A: Its adjustable cutting head lets you set precise angles (e.g., 45°, compound cuts) for miters, trim work, and layout details.

Q: How does it enhance cutting precision?
A: By securing large tiles and guiding cuts through calibrated angle settings, it delivers consistent, repeatable results.

Q: Is it suitable for large‑format slabs?
A: Yes — engineered for large tiles and panels where standard cutters struggle, improving control and accuracy.

Q: Who should use the Power Raizor MkII?
A: Professional tile installers, contractors, and fabricators requiring versatility and precision in cutting tasks.

Q: Why choose the Power Raizor MkII?
A: It combines angle adjustability, strong construction, and smooth operation for dependable performance in professional tile cutting.

Maintenance Tips

• Clean After Each Use: Remove tile dust, slurry, and debris from rails, clamps, and cutting surfaces to ensure smooth operation.
• Check Blade & Bearings: Inspect the diamond blade and rotating bearings regularly; replace worn components to maintain precise multi-angle cuts.
• Lubricate Moving Parts: Lightly oil sliding rails, pivot points, and adjustment knobs for smooth, accurate positioning.
• Verify Alignment: Ensure all rails, angles, and stops are properly aligned before cutting for consistent accuracy.
• Avoid Overloading: Do not force oversized or heavy slabs beyond the recommended weight to prevent structural stress.
• Use Proper Water Cooling: Maintain steady water flow to prevent overheating of the blade and reduce dust.
• Inspect Fasteners: Check screws, clamps, and locking mechanisms for tightness to avoid wobble or miscuts.
• Store Dry & Safe: Keep unit in a clean, dry environment to prevent corrosion and protect aluminum and steel parts.
